Electrostatic Powder Coating Oven COLO-1864
Electrostatic Powder Coating Oven COLO-1864
| Categories | Electric Powder Coating Oven |
|---|---|
| Brand | COLO powder coating machine |
| Model | COLO-1864 |
| Delivery Time | 7-15 Working Days |
| Shipping | By Sea |
| Application | Metal Finishing Industry |
| Download |  |
| Update Time | Jul 7,2025 |
Detail Information
Electrostatic Powder Coating Oven COLO-1864

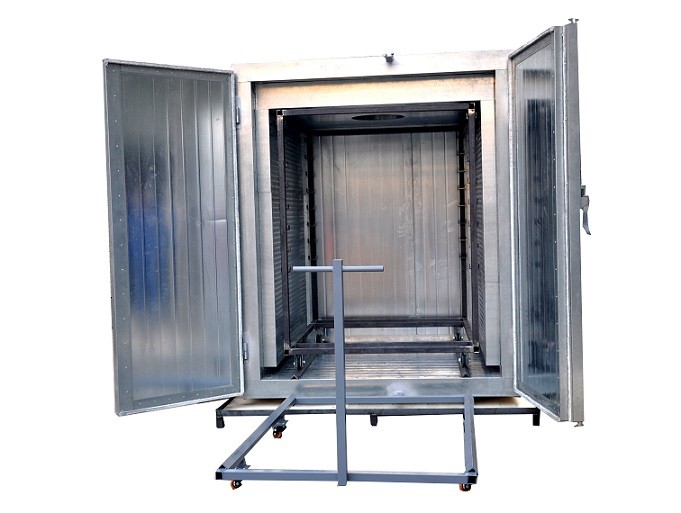

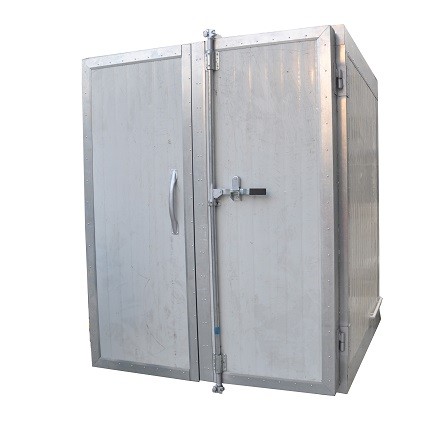

COLO-1864 Electrostatic powder coating oven is specially designed for batch curing metal parts, such as alloy wheels, bike and motocycle frames, and other metal parts and accessories. Applies electricity to create energy, the batch curing oven provides uniform heat distribution resulting in quality cured finishes and optimum cure cycles, ensure no color difference of the metal surface.
Product Details
PLC Controller
All parameters and functions are set on PLC panel, provides a high precision heating process, such as accurately setting desired temperature & heating time, control the circulation fan. The controller also equipped with audible and visual alarms keys ensures safety operating environment.

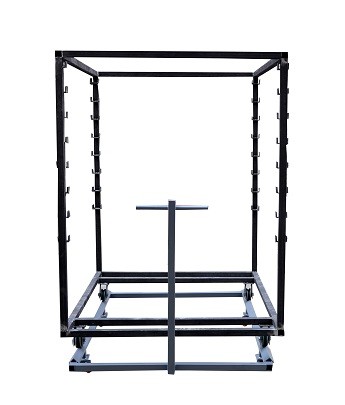

Powder Coating Oven Trolley
Standardly equipped with two manual trolleys, an inexpensive solution for transporting heavy workparts by using less force. One internal trolley only move in the chamber of oven across the hall that does not pullete the furnace. The external trolley load the internal trolley for outside transportation.
Circulation Fan
0.75kw circulation fan cycles hot airs in the chamber, minimize temperature difference and guarantee uniform-heated chamber, in order to make parts cure with a quality finish with even gloss and consistent color.
Powder Coating Oven Material
Interlayer is 100mm thickness rock wool board, maximize the effect of heat preservation.
Inner wall is 1mm heat-resisting galvanized steel.
Outer wall is anti-rust color steel, durable and long lifespan.
Product Parameters
|
Model
|
COLO-1864
|
|
Working Dimension (mm)
|
1600width x 1800 height x 1400 depth
|
Overall Dimension (mm) | 1900 width x 2200 height x 1700 depth |
|
Power supply
|
Electric
|
Voltage | 220V/380V(50-60Hz) |
Power supply | Electric/18kw |
Warm-up Time | 15-30min (180°C) |
Temperature stability | < ± 3-5°C |
Temperature max. | 250°C |
Circulation/ Air flow | Vertical ,Variable through holes on the walls |
Ventilation performance | 805-1677m3/h |
Transportation | Trolley |
