Electrostatic Powder Coating Oven for Small Kits COLO-1118

Electrostatic Powder Coating Oven for Small Kits COLO-1118

Electrostatic Powder Coating Oven for Small Kits COLO-1118
Electrostatic Powder Coating Oven for Small Kits COLO-1118Electrostatic Powder Coating Oven for Small Kits COLO-1118Electrostatic Powder Coating Oven for Small Kits COLO-1118Electrostatic Powder Coating Oven for Small Kits COLO-1118
CategoriesElectric Powder Coating Oven
BrandCOLO powder coating machine
ModelCOLO-1118
Delivery Time7-15 Working Days
ShippingBy Sea
ApplicationMetal Finishing Industry
FOB portNingbo/Shanghai
Download
Update TimeJul 19,2024
Detail Information

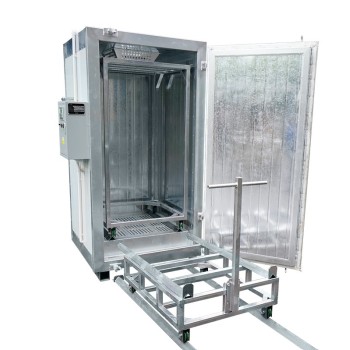

Electrostatic Powder Coating Oven for Small Kits COLO-1118
The electrostatic powder coating oven creates uniform and durable finish thanks to the professional design and high performance components, including 100mm thick rockwool board, circulation fan motor, energy-saving heating elements, easy-to-use PLC controller, etc. The COLO-1118 powder coating oven with not large space is an optimal choice for your wheel or other small kits.
Product Details
PLC Controller
The PLC controller panel controls all functions, it allows to easily set temperature & time as well as displays actual inside temperature to get a wonderful powder coating curing effect.
Powder Coating Oven Trolley
Standardly equipped with two manual trolleys, an inexpensive solution for transporting heavy workparts by using less force. One internal trolley only move in the chamber of oven across the hall that does not pullete the furnace. The external trolley load the internal trolley for outside transportation.
Circulation Fan
A powerful circulation fan cycles hot airs in the chamber, minimize temperature difference and guarantee uniform-heated chamber, in order to make parts cure with a quality finish with even gloss and consistent color.
Powder Coating Oven Material
Interlayer is 100mm thickness rock wool board, maximize the effect of heat preservation.
Inner wall is 1mm heat-resisting galvanized steel.
Outer wall is anti-rust color steel, durable and long lifespan.
Product Parameters
Model
COLO-1118
Working Dimension (mm)
1000width x 1800 height x 1000 depth
Power supply
Electric
Voltage
220V/380V(50-60Hz)
Power supply
Electric/9kw(1.5kwx6pcs)
Warm-up Time
15-30min (180°C)
Temperature stability
< ± 3-5°C
Temperature max.
250°C
Circulation/ Air flow
Vertical ,Variable through holes on the walls
Ventilation performance
805-1677m3/h
