Electric Powder Curing Oven COLO-1645

Electric Powder Curing Oven COLO-1645

Electric Powder Curing Oven COLO-1645
Electric Powder Curing Oven COLO-1645Electric Powder Curing Oven COLO-1645Electric Powder Curing Oven COLO-1645Electric Powder Curing Oven COLO-1645
CategoriesElectric Powder Coating Oven
BrandCOLO powder coating machine
ModelCOLO-1645
Delivery Time7-15 Working Days
ShippingBy Sea
ApplicationMetal Finishing Industry
FOB portNingbo/Shanghai
Download
Update TimeJul 19,2024
Detail Information

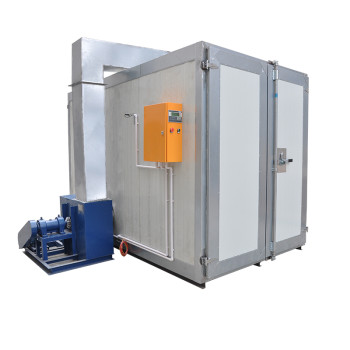

Electric Powder Curing Oven COLO-1645
COLO-1645 powder coating oven is a simple tool for curing powder-coated objects. The 4.5 meter length curing oven is designed for powder coating bulky parts or a big batch of small-sized parts, such as frames, profiles. Heated by electricity, while a 3kw circulation fan ensures uniform heat distribution through the entire dimension, reduces the task of operation and maintenance as well as creates a more clean environment.
Product Details
PLC Controller
All parameters and functions are set on PLC panel, provides a high precision heating process, such as accurately setting desired temperature & heating time, control the circulation fan. The controller also equipped with audible and visual alarms keys ensures safety operating environment.
Circulation Fan
A powerful 3kw circulation fan cycles hot airs in the chamber, minimize temperature difference and guarantee uniform-heated chamber, in order to make parts cure with a quality finish with even gloss and consistent color.
Powder Coating Oven Trolley
Standardly equipped with two manual trolleys, an inexpensive solution for transporting heavy workparts by using less force. One internal trolley only move in the chamber of oven across the hall that does not pullete the furnace. The external trolley load the internal trolley for outside transportation.
Powder Coating Oven Material
Interlayer is 100mm thickness rock wool board, maximize the effect of heat preservation.
Inner wall is 1mm heat-resisting galvanized steel.
Outer wall is anti-rust color steel, durable and long lifespan.
Product Parameters
Model
COLO-1645
Working Dimension (mm)
Width1500 x Height1650 x Depth4500 mm
Overall Dimension (mm)
Width1800 x Height2050 x Depth4800 mm
Power supply
Electric
Voltage
220V/380V(50-60Hz)
Power supply
Electric/54kw
Warm-up Time
15-30min (180°C)
Temperature stability
< ± 3-5°C
Temperature max.
250°C
Circulation/ Air flow
Vertical ,Variable through holes on the walls
Ventilation performance
1131-2565m3/h
Transportation
Trolley
