7m Gas Fired Powder Coating Curing Oven
7m Gas Fired Powder Coating Curing Oven
Detail Information
7m Gas Fired Powder Coating Curing Oven
This 7meter depth powder coating oven is designed for curing long length workparts in batches, such as aluminum profiles. It is recommended to take gas or diesel as fuels, which fearures higher heating efficiency and lower energy expense. Using with imported Riello burner takes full utilization of fuels, leading to remarkably heating efficiency with less energy expense.

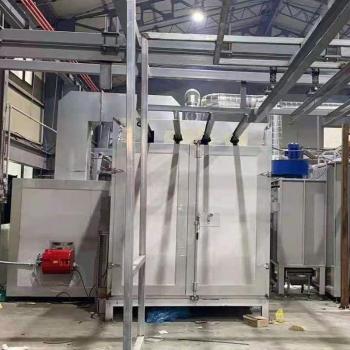

Powder Coating Overhead Track System
Loading system can be customized to be overhead track system which allows less effort to moving heavy elements in a continous manual production line.
A batch of heavy workparts' movement from spraying stage to curing stage is assisted by overhead tracks horizontally pulled by operators, which greatly saves force and increases efficiency while ensures output.
Product Details
PLC Controller
The electric controller panel controls all functions, it allows to easily set temperature & time as well as displays actual inside temperature to get a wonderful powder coating curing effect.
Circulation Fan
5.5kw circulation fan circles the hot air to warm the powder coating oven interior, minimizes temperature difference and guarantee uniform-heated chamber. In order to make parts cure with a quality finish with even gloss and consistent color.
RIELLO Gas Burner
An imported Riello burner takes full utilization of fuels, saving energy at the same time giving much quicker raise to a required temperature. The combustion process is clean and pollution-free.
Powder Coating Oven Material
Interlayer is 100mm thickness rock wool board, maximize the effect of heat preservation.
Inner wall is 1mm heat-resisting galvanized steel.
Outer wall is anti-rust color steel, durable and long lifespan.
Product Parameters
|
Model
|
COLO-7021
|
|
Working Dimension (mm)
|
1800 width x 2100 height x 7000 depth
|
Overall Dimension (mm) | 2000 width x 2400 height x 7200 depth |
|
Power supply
|
Gas/Diesel/LPG
|
Voltage | 220V/380V(50-60Hz) |
Motor power | 5.5kw |
Warm-up Time | 15-30min (180°C) |
Temperature stability | < ± 3-5°C |
Temperature max. | 250°C |
Circulation/ Air flow | Vertical ,Variable through holes on the walls |
Ventilation performance | 8288-16576m3/h |
Burner | Italy RIELLO, 200,000kcal |
