LPG Fired Powder Coating Oven COLO-0813

LPG Fired Powder Coating Oven COLO-0813

LPG Fired Powder Coating Oven COLO-0813
LPG Fired Powder Coating Oven COLO-0813LPG Fired Powder Coating Oven COLO-0813LPG Fired Powder Coating Oven COLO-0813LPG Fired Powder Coating Oven COLO-0813
CategoriesGas Powder Coating Oven
BrandCOLO powder coating machine
ModelCOLO-0813
Delivery Time7-15 Working Days
ShippingBy Sea
PowerLPG/ GAS/ Diesel
ApplicationMetal Finishing Industry
FOB portNingbo/Shanghai
Download
Update TimeJul 19,2024
Detail Information

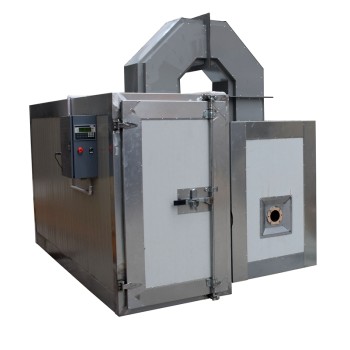

LPG Fired Powder Coating Oven COLO-0813
COLO-0813 small powder coating oven applying indirect-fired gas heating system, ensures excellent curing effects and stable quality which is also friendly to environment. Comparing with electric sourced oven, gas furnace leads to remarkably lower long-term running costs especially comparing with those countries whose electricity is expensive.
Product Details
PLC Controller
The electric controller panel controls all functions, it allows to easily set temperature & time as well as displays actual inside temperature to get a wonderful powder coating curing effect.
Powder Coating Oven Trolley
Standardly equipped with two manual trolleys, an inexpensive solution for transporting heavy workparts by using less force. One internal trolley only move in the chamber of oven across the hall that does not pullete the furnace. The external trolley load the internal trolley for outside transportation.
Circulation Fan
1.5kw circulation fan circles the hot air to warm the powder coating oven interior, minimizes temperature difference and guarantee uniform-heated chamber. In order to make parts cure with a quality finish with even gloss and consistent color.
RIELLO Gas Burner
An imported Riello burner takes full utilization of fuels, saving energy at the same time giving much quicker raise to a required temperature. The combustion process is clean and pollution-free.
Powder Coating Oven Material
Interlayer is 100mm thickness rock wool board, maximize the effect of heat preservation.
Inner wall is 1mm heat-resisting galvanized steel.
Outer wall is anti-rust color steel, durable and long lifespan.
Product Parameters
Model
COLO-0813
Working Dimension (mm)
Width800 * Heght1500 * Depth3000mm
Overall Dimension (mm)
Width1200 * Heght1900 * Depth3500mm
Power supply
Gas/Diesel/LPG
Voltage
220V/380V(50-60Hz)
Motor power
1.5kw
Warm-up Time
15-30min (180°C)
Temperature stability
< ± 3-5°C
Temperature max.
250°C
Circulation/ Air flow
Vertical ,Variable through holes on the walls
Ventilation performance
1131-2565m3/h
Transportation
Trolley
