Automatic reciprocator sprayer to Philippines

Automatic reciprocator sprayer to Philippines

Automatic reciprocator sprayer to Philippines
Automatic reciprocator sprayer to PhilippinesAutomatic reciprocator sprayer to PhilippinesAutomatic reciprocator sprayer to Philippines
CategoriesAutomatic Powder Coating Systems
AlbumView larger image
BrandCOLO powder coating machine
Modelcolo-2000D-191S
Stroke1.5/1.8/2/2.5m
Speedadjusted
Usagepowder coating ,liquid painting
ControlMitsubishi inverter
FOB portFOB NINGBO o SHANGHAI
Terms of PaymentT/T, Western Union, paypal
Download DOC
Update Time2019-04-19
Detail Information
High Efficiency Automatic Powder Coating Guns
Electrostatic automatic powder coating gun with powder painting reciprocator, especially designed to meet the requirements of serial production in powder coating line, where reliability in automated operation, easy to handle operation and security are the most projecting advantages for the user. The type and the number of installed control units could make as your requirements
Features of COLO-191S-A Automatic Powder Gun Unit
•The COLO-191S Automatic powder coating gun allows precise parameters settings (air, high voltage, current, powder output).
•All values can be controlled centrally by the unit, and directly read on the LCD digital display
•Users can save individual settings, based on personnel experience in 20 different programs.
•All settings for efficient powder coating are simple to operate and repeatable, the controller permits accurate amount of powder delivering and leads to perfect quality.

COLO-191S Automatic powder coating gun parameters

Power range

100-240V

Frequency

50/60HZ

Temperature range in use

-10 +50

Gun weight:

500g

Rated output voltage

24VDC

Maximum output voltage

0-100KV ( adjustable)

Maximum powder injection

600g/min

Polarity

negative (-)

Maximum input-air pressure

10kg/cm

Optimum input-air pressure

6kg/cm

Maximum compressed-air consumption

13.2 m3/h

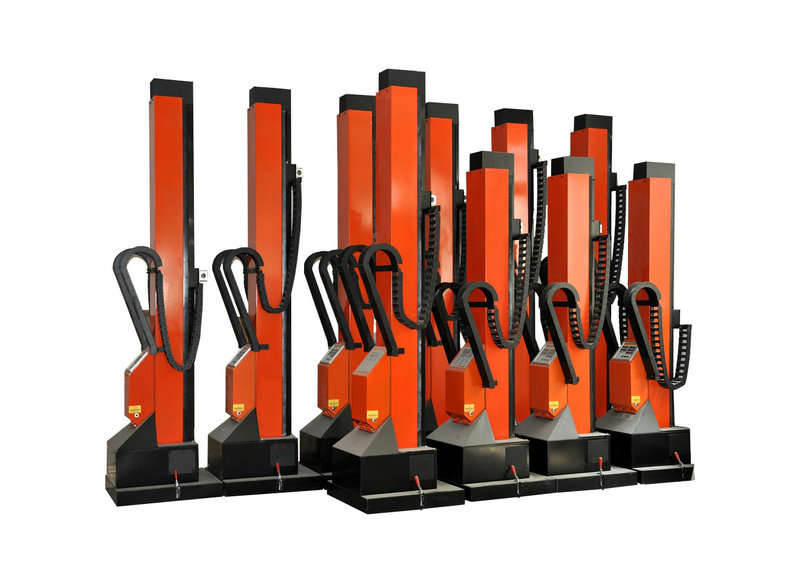

Features of COLO-2200D PLC Controlled Powder Coating Reciprocator

•Precise and gentle motion for speedy and uniform coating by frequency adjustable motor via PLC.

•Quick job change pre-programmable preset settings for automatic selection of stroke and speed.

•Advanced digital controller with user-friendly touch screen to control speed and stroke length.

•Adjustable counterbalance weights allow perfectly balanced gun movement. Max. to carry 12 pcs spray guns
