Automatic Powder Coating Spray Gun COLO-191S-A
Automatic Powder Coating Spray Gun COLO-191S-A
| Categories | Automatic Powder Coating Machine |
|---|---|
| Brand | COLO powder coating machine |
| Model | COLO-191S |
| Delivery Time | 1-3 Working Days |
| Shipping | By Express (DHL, Fedex, Ups) |
| Application | Metal Finishing Industry |
| Package size | 43cm*43cm*56cm |
| FOB port | Ningbo/Shanghai |
| Update Time | Oct 24,2024 |
Detail Information

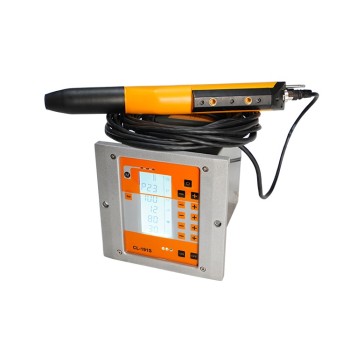

Automatic Powder Coating Spray Gun COLO-191S-A
COLO-191S automatic powder coating gun control unit with spray gun, can be integrated into a central cabinet, working with reciprocators, obtain consistent and uniform thickness of powder coatings.
It offers all functions you need, such as precisely adjusting all electric and pneumatic parameters, selecting preset programs, creating and saving personalized application programs.
Product Details
COLO-191S Powder Gun Controller
* This machine applies digital valve control technology for fast and precise adjustment that ensures adjust the powder output and atomization, flexibly control voltage and current.
* There are 3 one-touch intelligent buttons which stands for 3 pre-set application programs: panel coating, corner coaring and recoating, giving easy access to powder coating beginners.
* Allows experienced users create and store a library of personalized programs which are optimized for their parts and powders.
* Thanks to the DVC technology it allows precise and repeatable regulations of the conveying and supplementary air to the injector, which are very important to achieve stable powder output and unifrom coating results.
COLO-08 Automatic Spray Gun
* Lightweight, compact gun provides 100 kV and the highest transfer efficiency available for venturi-based coating systems.
* Air-purge cleanable design for fast, easy cleaning, without gun disassembly, a requirement for all quick color change applications.
* Superior Faraday-cage penetration and recoating capability to adapt a wide range of coating challenges, superior powder coating coverage.
* Comes with full array of nozzle assortment to optimize your spraying effect, including flat nozzle, round spray nozzles with different size deflectors, and extension nozzles.
Product Parameters
|
Model
|
COLO-191S-A
|
|
Power Range |
220V/110V |
|
Frequency
|
50HZ/60HZ |
Gun Weight | 500g |
|
Temperature range in use |
-10 ℃+50 ℃ |
Rated output voltage | 24VDC |
Input Voltage | 200kv |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100KV (adjustable) |
Maximum powder injection | 600g/min |
Polarity | negative (-) |
