Flat Nozzle #1000 047

Flat Nozzle #1000 047

 manual powder gun shaft (incl. cascade)

Negative polarity (-) 1001 891

Positive polarity (+) 1001 892

C Cascade (negative polarity) - complete 1000 809

Cascade (positive polarity) - complete 1002 031

1 Gun body 1001 155

 Handle - complete set (pos. 5, 6, 7 and 8) 1000 807

2 Trigger - complete (incl. pos. 2 and 3) 1001 341

3 Compression spring - 0.36x4.2x49.4 mm 1001 487

4 Trigger cover 1000 801

5 Grasp termination 1000 806

6 Radial gasket 1000 803

7 Gun cable - L=6 m, complete 1001 528

 Extension cable for gun cable - L=6m, incl. safety clamp 1002 161

 Extension cable for gun cable - L=14m, incl. safety clamp 1002 162

 Safety clamp for extension cable 1002 064

8 Grub screw - M3x8 mm 1000 844

10 Powder tube - complete 1001 339

10.2 O-ring - Ø 12x1.5 mm 1000 822

11 Rinsing air connection 1000 804

12 Clip ring 1000 898

13 Compression spring 1001 488

14 Back cover - complete 1000 617

14.1 Printed circuit board holder - complete (incl. pos. 14.2) 1002 029

14.2 Radial gasket 1000 795

14.3 Shield - complete 1002 028

14.4 Cap screw - M3x8 mm (not shown) 202 363

15 Hose connection - complete, for internal hose Ø 11-12 mm 1001 340

 Hose connection - complete, for internal hose Ø 9-10 mm 1002 030

15.2 O-ring - Ø 12x1.5 mm 1000 822

16 Hook (replaceable) 1000 877

17 Countersunk head screw - M4x8 mm, plastic 263 516

18 PT-screw 1000 843

19 Threaded sleeve - complete 1000 948

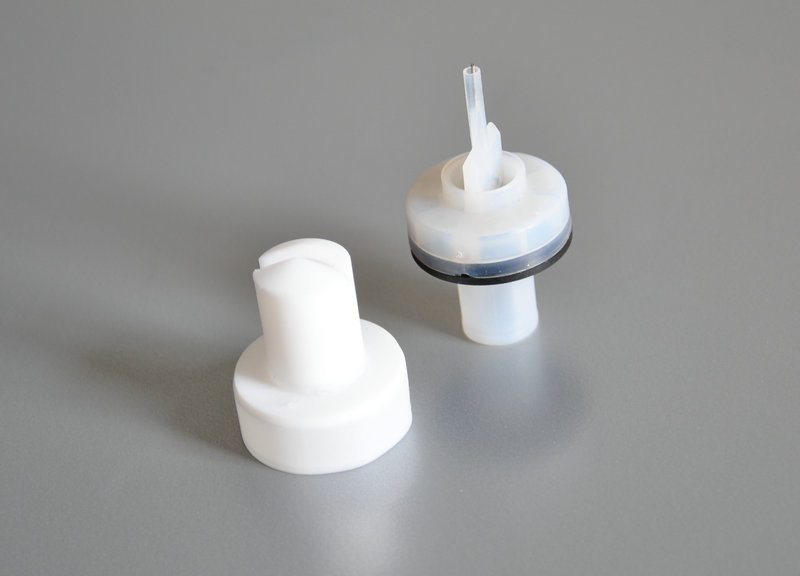

20 Flat jet nozzle - complete 1000 047

20.1 Electrode holder - complete 1000 055

20.2 Flat jet nozzle 1000 049
