Anti-static PP Automatic Powder Coating Spray Booth

Anti-static PP Automatic Powder Coating Spray Booth

Anti-static PP Automatic Powder Coating Spray Booth
Anti-static PP Automatic Powder Coating Spray BoothAnti-static PP Automatic Powder Coating Spray BoothAnti-static PP Automatic Powder Coating Spray Booth
CategoriesAutomatic Powder Coating Booth
BrandCOLO powder coating machine
ModelCOLO-PP
Delivery Time30 Working Days
ShippingBy Sea
ApplicationMetal Finishing Industry
FOB portNingbo/Shanghai
Download
Update TimeJul 19,2024
Detail Information

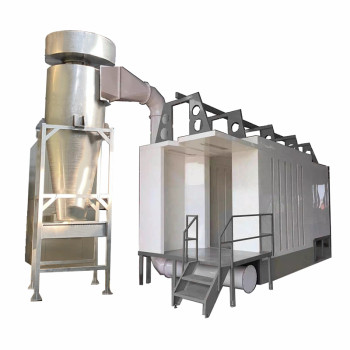

Anti-static PP Automatic Powder Coating Spray Booth

Anti-static pp automatic powder coating booth constructed with plastic booth chamber and stainless steel cyclone, which is specially built for multi-color coating lines. As the booth wall is made of anti-static plastic it does not attract powders which minimizes powder accumulation on the surface. It is the best choice for quick color change and high powder recovery demands.
PP Automatic Powder Coating Spray Booth Features
1. Booth material is made anti-static engineering plastic, which is non-stick of powders, reduces powder waste and improve efficiency.
2. Mono cyclone achieves recycling efficiency up to 98%, a great saving of powders, a quick cleaning takes around 15 minutes.
3. With the discharge device of "large-diameter cyclone separator + after filter unit" makes the least powder accumulation and the most environmental-friendly emission.
4. There's air clean system continuously transports over sprayed powder from the booth floor, quickly recycling it back to the powder feed container.
5.Worked with powder coating reciprocator carries auto spray guns for uniform coating job, advanced powder self-recycling feed center ensures maximum utilization of powder and least waste.
Powder Coating Booth Floor Design

The powder coating booth floor integrated with various air cleaning system. Air-knives are integrated in the side-walls of the stainles steel floor,during operation and cleaning air blasts are periodically released by the air knives, periodically removes the powder accumulated on the booth floor.
The air blastsre move the powder accumulated on the booth floorand push it to the extraction and recovery system. The booth floor remains clean, with just a minimum amount of powder on the booth floor.
Product Parameters
Model
COLO-PP Booth
Working Dimension (mm)
Width1700 x Depth8600 x Height2100 mm
Weight
4000kg
Voltage
380V/220V. customized as local.
Power supply
Electric
Nominal power
15kw
Frequency
50-60Hz
Filters
Polyester, 32pcs
Filter cleaning system
Pneumatic
Booth Material
Wall:PVC;  Floor PVC
Cyclone Material
Stainless Steel
