HICOLO professional make powder coating and spray booths.
Efficient and space saving solutions

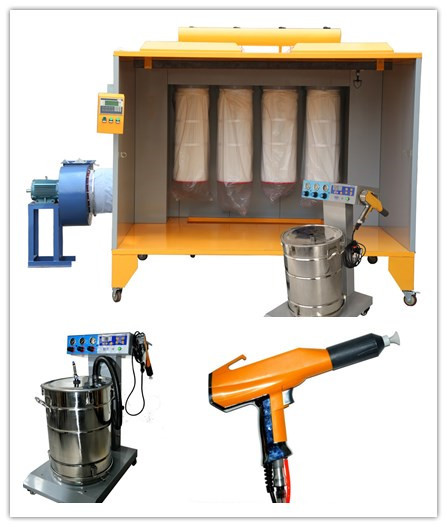

this new powder coating booth with PLC controller,could control the powder coating booth more accurate.we could provide you the powder coating booth that will fit your needs. the powder coating spray booth fans draw air through filters . as the cartridge filters load,air flow decreases and the negative pressure rises within the air handler. a timer activates a system of air purging valves that clear the cartridge filters of the accumulated powder to ensure max filter life.
Durable, long-life powder-coated steel structure with high-quality galvanized canopy and floor
Low-profile booth base eliminates operator platforms
Requires only quick, easy connect electrical and pnematics to start production
Smooth inner surface easy clean
Operator dimensions: 2300x 1700x1500mm
Overall dimensions: 2550x 2240x 2140mm
Power suppl : electric
Nominal power: 3.5KW
Frequeny : 50-60hz
Filter: 4 pcs polyester , easy for change
Filter cleaning system: Pneumatic

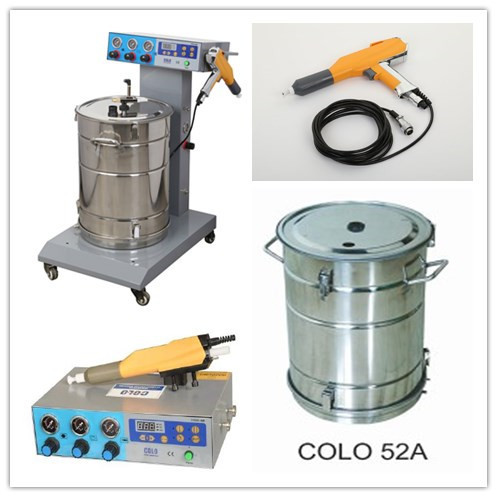

This pulse manual electrostatic Powder coating machine can coat all kinds of shapes.
Mains input voltage 100-240 VAC
Operating frequency 50-60 Hz
Input power 50W
Nominal output voltage (to the gun) max. 12 V
Nominal output current (to the gun) max. 1 A
Ambient temperature range 0°C - +40°C (+32°F - +104°F)
Max. operating temperature 85°C (+185°F)
Compressed air connection 1/4" male quick release
Max. input pressure 10 bar / 145 psi
Min. input pressure (while unit in operation) 6 bar / 87 psi
Max. water vapor content of the compressed air 1.3 g/m³
Max. oil vapor content of the compressed air 0.1 mg/m³
Length 69 CM
Width 56 CM
Height 52 CM
Weight approx. 35kgs

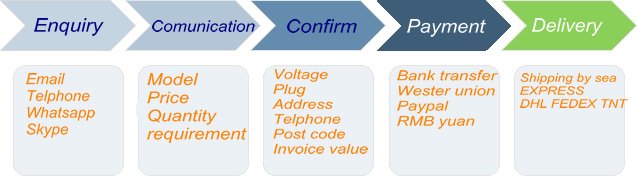

How to purchase with HICOLO ?
