Digital Coating Thickness Gauge

Digital Coating Thickness Gauge

Digital Coating Thickness Gauge
Digital Coating Thickness GaugeDigital Coating Thickness Gauge
CategoriesOther accessories
AlbumView larger image
BrandCOLO powder coating machine
ModelCM-8856
OriginalChina
UseTest powder coating thinkess
Delivery time7 days
Download DOC
Update Time2018-12-12
Detail Information

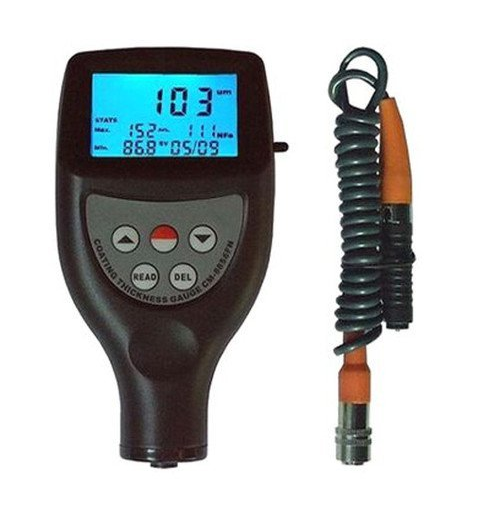

Application of Digital coating thickness gauge CM-8856

It used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage

tanks, etc .in industries of petroleum, shipbuilding, power station, and machine manufacturing.

Magnetic sensor to measure the non-ferromagnetic coatings on steel, iron and other ferromagnetic metal matrix coating, such as: paint, powder, plastic, rubber, synthetic material, phosphide layer, chromium, zinc, lead, aluminum, tin,cadmium, porcelain, enamel, oxide. Eddy current sensor to measure the enamel substrate such as copper, aluminum, zinc, tin, rubber, paint, plastic layer. Widely used in the field of manufacturing, metal processing industry, chemical industry, commodity inspection and other testing.


Specification of Digital coating thickness gauge CM-8856


Display: 4 digits LCD, backlit
Range: 0~1250 μm/0~50mil
Resolution: 0.1 μm (0~99.9μm)1 μm (over 100μm)
Accuracy:±1~3%n or 2.5 μm or 0.1mil(Whichever is the greater)
PC interface:with RS-232C interface
Power supply: 2x1.5 AAA(UM-4) battery
Operating condition:Temp. 0~50℃
Humidity <95%
Size: 126x65x35 mm5.0x2.6x1.6 inch
Weight: about 81g(not including batteries)


Accessories for Digital coating thickness gauge CM-8856:

Carrying case ...................1 pc.
Operation manual ............ 1 pc.
F probe in built .................1 pc.
NF probe in built...............1 pc.
Calibration foils ..............1set.
Substrate (Iron) ................1 pc.
Substrate (Aluminium)......1 pc.
Optional accessories:RS-232C cable & software and USB adaptor for RS-232C

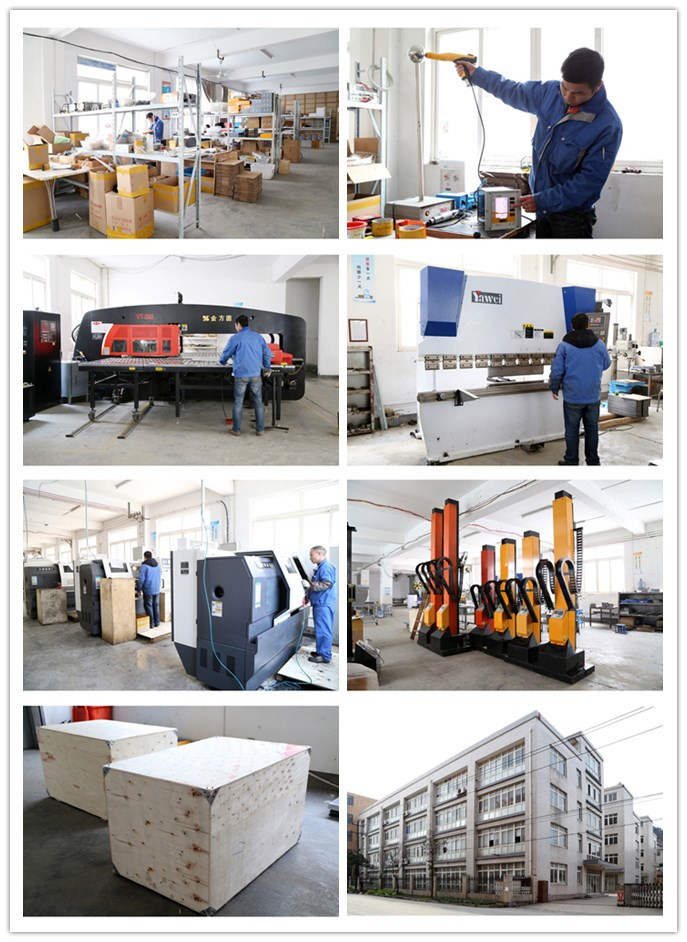

More pictures about HICOLO.
