New Powder coating machine COLO-800D-L2

New Powder coating machine COLO-800D-L2

New Powder coating machine COLO-800D-L2
New Powder coating machine COLO-800D-L2New Powder coating machine COLO-800D-L2New Powder coating machine COLO-800D-L2New Powder coating machine COLO-800D-L2
CategoriesHopper Powder coating Set
AlbumView larger image
BrandCOLO powder coating machine
ModelCOLO-800D-L2
BrandCOLO
UsingPowder coating
ConditionNew
Powder gun typeCorona
Method typeManual
Modelelectrostatic powder coating
Voltage110V/220V
Unit PriceUS $ 950 / piece
FOB portNINGBO or SHANGHAI
Terms of PaymentT/T
Download DOC
Update Time2019-10-14
Detail Information

Colo-800D-L2 manual Powder coating equipment with the new trolley , moving easily in the workshop.

This model we sell more than 8 years in the market, we get very good feedback from customer.

Technical Data
Electrical data
Power range                                   220V
Frequency                                     50HZ
Temperature range in use                      -10 ℃+50 ℃

Powder Gun
Gun weight:    ………………                    500G
Rated output voltage ………                      24VDC
Input voltage     ……………                       - 200kv
Maximum output current  ………                   180Ua(max)
Maximum output voltage…………                   0-100KV (  adjustable)
Maximum powder injection :………                    600g/min
Polarity ………………                                negative (-)
Pneumatic data
Maximum input-air pressure …………..                 10kg/cm
Optimum input-air pressure……..                        6kg/cm
Minimum input-air pressure   ……                      4kg/cm
Maximum water vapor content or compressed air …..      1.4g/N m3
Maximum oil vapor content of compressed air   ……..     0.1ppm
Maximum compressed-air consumption………            13.2 m3/h

Dimensions
Width 690mm
Depth 800mm
Height 1135mm
Weight 45kgs

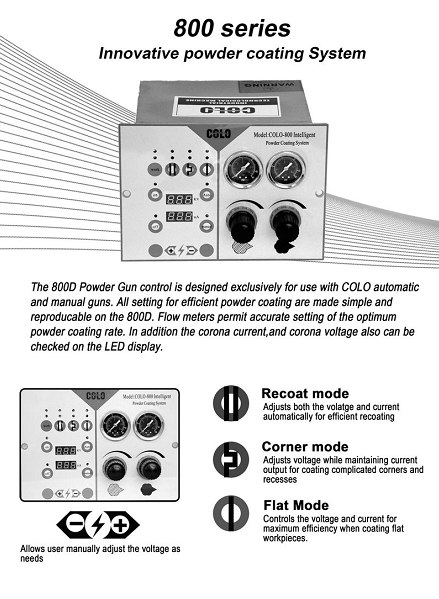

COLO-800D control unit
 Included in the powder coating machine packages?
Complete 800D  Powder Coating System with gun, controller, hopper (box feed model have no hopper) ,
stand, hoses, cables, and connectors
Powder gun kits
