Infrared Gas Heating Powder Coat Oven

Infrared Gas Heating Powder Coat Oven

Infrared Gas Heating Powder Coat Oven
Infrared Gas Heating Powder Coat OvenInfrared Gas Heating Powder Coat OvenInfrared Gas Heating Powder Coat OvenInfrared Gas Heating Powder Coat Oven
CategoriesGas Powder Coating Oven
BrandCOLO powder coating machine
ModelCOLO- Infrared Oven
Delivery Time7-15 Working Days
ShippingBy Sea
ApplicationMetal Finishing Industry
FOB portNingbo/Shanghai
Download
Update TimeJul 19,2024
Detail Information

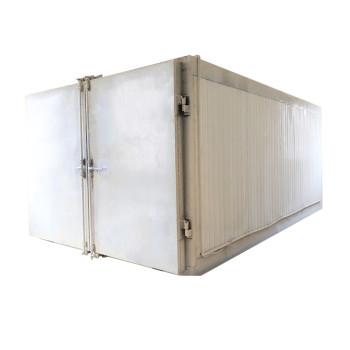

Infrared Gas Heating Powder Coat Oven
Infrared ovens can be gas infrared or electric infrared, it specially designed for curing workparts after powder coating, where the coating chemically reacts with heat to form long molecular cains with high cross-link density, making it tougher and more durable. Increase production ,reduce its natural gas consumption
Product Details
PLC Controller
The electric controller panel controls all functions, Intelligent temperature control, with alarmdevice, timing, leakage protection, caseenvironmental protection.
Powder Coating Oven Trolley
Standardly equipped with two manual trolleys, an inexpensive solution for transporting heavy workparts by using less force. One internal trolley only move in the chamber of oven across the hall that does not pullete the furnace. The external trolley load the internal trolley for outside transportation.
Circulation Fan
4kw circulation fan circles the hot air to warm the powder coating oven interior, minimizes temperature difference and guarantee uniform-heated chamber. In order to make parts cure with a quality finish with even gloss and consistent color.
RIELLO Gas Burner
An imported Riello burner takes full utilization of fuels, saving energy at the same time giving much quicker raise to a required temperature. The combustion process is clean and pollution-free.
Powder Coating Oven Material
Interlayer is 100mm thickness rock wool board, maximize the effect of heat preservation.
Inner wall is 1mm heat-resisting galvanized steel.
Outer wall is anti-rust color steel, durable and long lifespan.
Product Parameters
Model
COLO- Infrared Oven
Working Dimension (mm)
2.4width x 2.2height x 3.2 depth(mm)
Overall Dimension (mm)
2.6 width x 2.4 height x 3.4depth(mm)
Power supply
Gas/Diesel/LPG
Voltage
220V/380V(50-60Hz)
Motor power
4kw
Warm-up Time
15-30min (180°C)
Temperature stability
< ± 3-5°C
Temperature max.
250°C
Circulation/ Air flow
Vertical ,Variable through holes on the walls
Ventilation performance
1000-1677m3/h
Transportation
Trolley
