Powder Coating LPG Gas Cylinders

Electrostatic powder coating delivers robust anti-corrosion, UV and impact protection for LPG cylinders and storage tanks. It meets strict safety standards for pressure vessels, extends tank service life and supports high-volume automatic production.

LPG cylinders often bump and scratch during transportation and handling. Powder coating is much harder than liquid paint, resisting chipping and peeling during frequent handling.

Polyester powder topcoat resists sunlight fading and weather aging for above-ground LPG tanks. Epoxy powder works for underground tanks against soil corrosion.

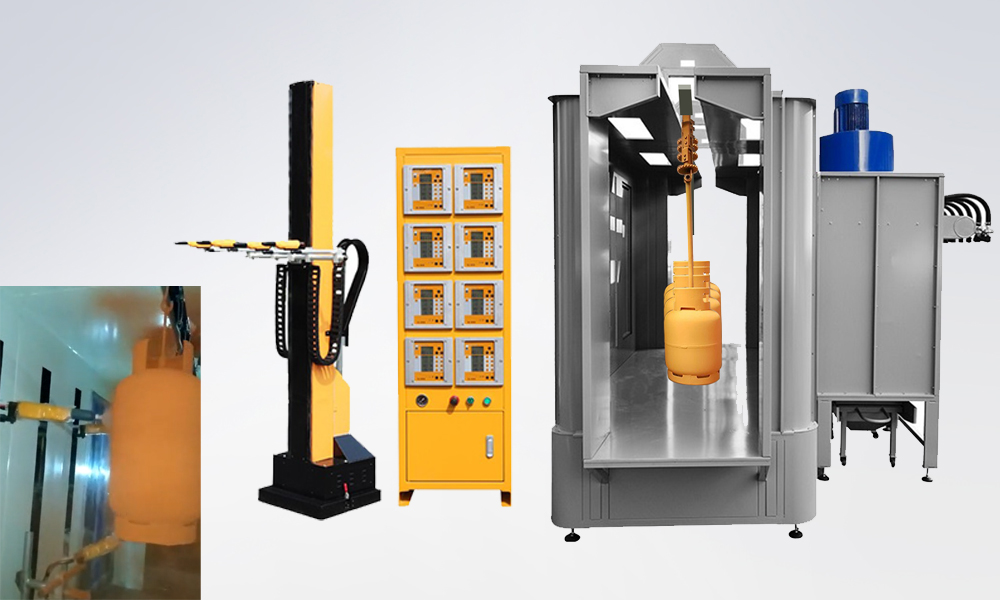

Automatic Powder Coating Solution for LPG Tanks

Automatic powder coating solution is the most widely and choice for LPG cylinder surface finishing with high efficiency, it ensures consistent film thickness on curved tank surfaces, compatible with automatic spray booths and curing ovens for large-batch cylinder production.

COLO powder coating equipment is intelligent and effective to coat any shape of parts, whether flat areas or hard-to-reach angles, bends, corners. The powder coating spray job is performed in a powder recovery booth for environmental protection and powder reclaim purpose.

How Automatic Powder Coating Systems Works for LPG Tanks

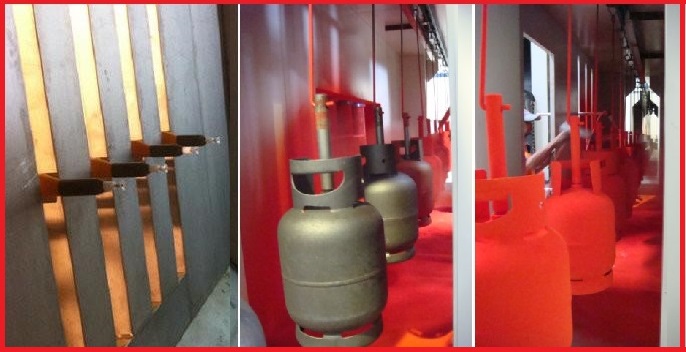

The highlight of the solution is the specially designed automatic powder  booth for LPG tank, for other cylindrical shaped products. There're overhead tunnel track with rotatable hangers installed on the top of powder booth, ensures cylinder or round products can be completely coated.

With one automatic reciprocator working station and one manual repair coating station, allow 4-6pcs auto spay gun moving up and down to coat the cylinder body. Also Equipped with 2pcs auto powder guns fixted at the bottom to spray the bottom of the cylinder, and 2pcs auto guns fixed at the top to powder coat the top of the cylinder.

After powder spray, the gas cylinder will be put into a powder coating oven which heat work parts(150-200C), making the coated powders melting, leveling and curing to form a solid covering film.
