Powder Coating Aluminum Profiles

Powder coating has become the preferred surface‑finishing technology for aluminum profiles across construction, architecture, transportation and general metal‑fabrication industries.

Direct‑exposed aluminium is prone to oxidation, corrosion, UV fading and weather degradation. COLO's powder coating equipment delivers high‑quality powder coating coverage that is a tough protective barrier which shields the aluminium substrate against harsh outdoor environments while delivering decorative visual effects.

For not high productions and large budget, a cost-efficient manual powder coating plant for aluminimum profile is now a popular solution.


Manual Powder Coating Plant for Aluminium Profiles

This powder coating solution is specially designed for manual coating of aluminum profiles and other long thin metal parts. The manual painting line includes overhead track system, manual coating machine, pass thru spray booth and curing oven.  A batch of aluminium profiles moves thru one station to another are helped by overhead track with manual operation. it greatly reduces labor efforts while ensures high production efficiency.

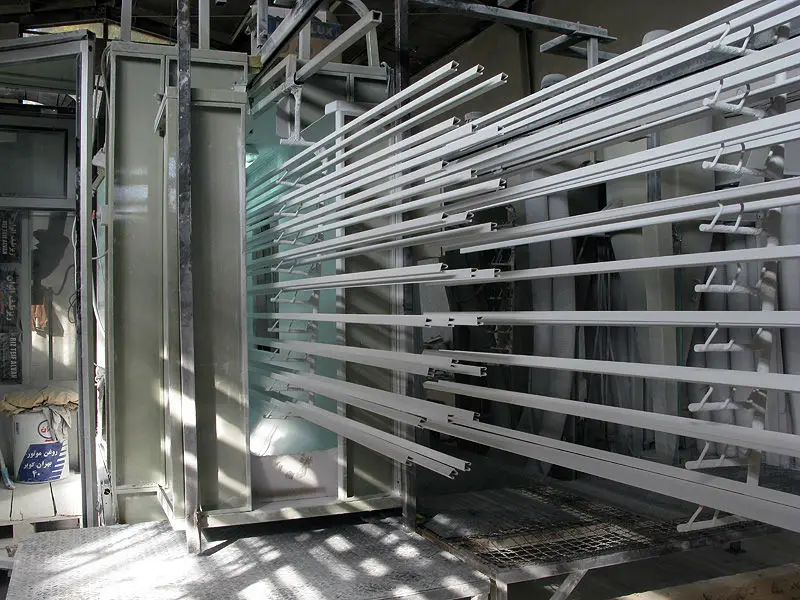

Powder Coating Line for Aluminum Profiles

Powder Coating Solution 3D Drawing

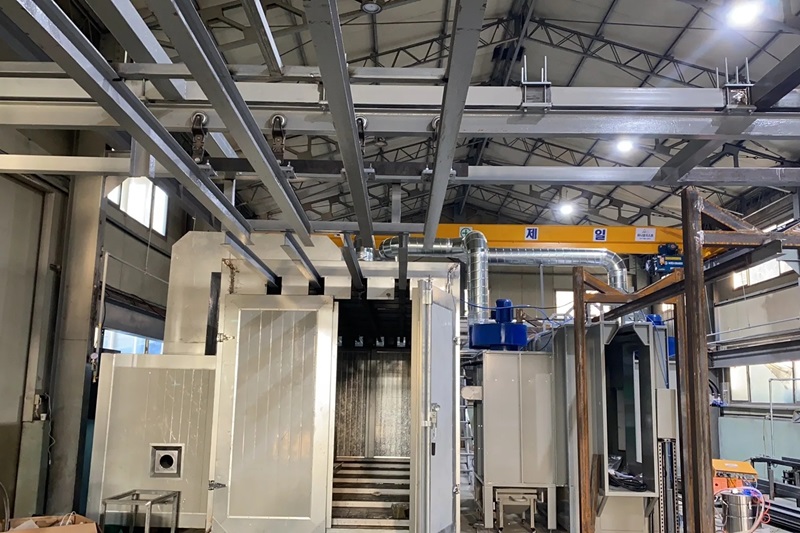

Powder Coating Plant for Aluminum Profiles

On-site Powder Coating Plant


Aluminium Profile Manual Powder Coating Plant Working Princple

Thanks to the manually-pull track system, aluminum profile movement is easy and effortless. Powder coating is by intelligent manual coating equipment, which offers more flexible operation that automatic line can not achieve.  Pass thru powder coating booth allows parts enter the booth from one entrance and exit from the other through overhead track while recieving powder coating from bilateral stations. This powder coating oven wth top tracks allows curing big batch workparts that achieves high output, and finally get durable, consistent-colored coating film.
