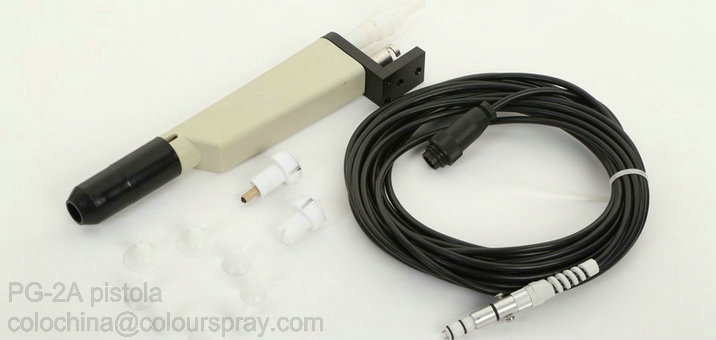

PG 2-AX Automatic Powder Gun for Quick Colour Changes)

The extremely lightweight PG 2-A Automatic powder gun with an integrated high-voltage
generator has a very high penetration power and a high, constant transfer efficiency because
of its patented air-cleaned central electrode. The gun can be dismantled, making it easy to
maintain and repair.

Gun complete (without Items 11, 12, 16)
- Powder tube above (Polarity –) 361 690
- Powder tube above (Polarity +) 361 704
- Powder tube below (Polarity –) (Option) 361 674
- Powder tube below (Polarity +) (Option) 361 682
Gun Body (Items 1, 3, 4, 6, 10, 17)
- Powder tube above (Polarity –) (Option) 361 399
- Powder tube above (Polarity +) (Option) 361 402
Gun Body (Items 1, 3, 5, 6, 10, 17)
- Powder tube below (Polarity –) (Option) 360 899
- Powder tube below (Polarity +) (Option) 360 902
1 Shaft complete (with Item 17)
- Polarity – 361 534
- Polarity + 361 542
3 Gasket - 1.5 mm 360 236
4 Gun supporting bracket complete - Powder tube above 361 496
5 Gun supporting bracket complete - Powder tube below (Option) 361 488
6 "PT" Special screw 248 827
7 Gun cable (20 m) complete - for PG 2-A (with Items 8 and 9) 360 600
8 O-Ring - ø 10.82 x 1.78 mm - Nitril 232 556
9 O-Ring - ø 7.65 x 1.78 mm - Nitril 232 564
10 Powder tube complete with quick-change release for
ø 16 / 11 mm Powder hose 361 453
11 Powder hose - ø 16 / 11 mm 103 012#*
12 Rinsing air hose - ø 6 / 4 mm 103 144*
13 Quick-release coupling - ø 6 / 4 mm 200 840
14 Flat Jet Nozzle Set - Vented 319 350#
15 Threaded sleeve 328 774
16 SuperCorona complete 360 414#
17 Sealing rod - complete 361 526
17.1 O-ring - ø 3.5 x 0.9 mm - Nitril 232 432
26 Spiral brush for PG 2-A (not shown) 300 039

32 Powder hose connection - complete 362 670
32.1 O-Ring - ø 13.1 x 1.6 mm - Nitril 232 670#
33 Small parts set (not shown)
34 Extractor (not shown) 365 270
35 Adapter - PG 1-A Gun connector/PG 2-A 362 824◊
36 PG 1-A Gun connector - from existing PG 1-A gun◊
37 7 pin plug (for PG 1-A Gun connector) - from existing PG 1-A gun◊
