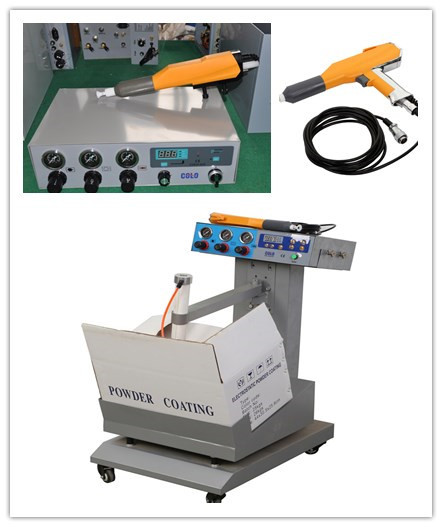

Original box Powder coating unit with vibration

Original box Powder coating unit with vibration

Original box Powder coating unit with vibration
CategoriesBox Feed Manual Coating machine
BrandCOLO powder coating machine
ModelCOLO-660V
BrandCOLO
MethodPowder coating
Type of sprayCorona
UsingElectrostatic powder
Voltage110/220V
Delivery time3 days
FOB portNINGBO/SHANGHAI
Terms of PaymentT/T, Western Union, PAYPAL
Update TimeMar 29,2024
Detail Information

Fast color change coating systems.

Flat model: maximizes voltage for superior transfer efficiency with coating flats parts

Complex model: adjust the voltage while holding current when coating complicated shapes and corners

Recoat model: adjust the voltage and current automatically for recoating of parts

Pulse model: rapidly recharges the powder to coat complex shapes



Electrical data

Power range 220V/110V

Frequency 50HZ /60HZ

Temperature range in use -10 ℃+50 ℃

Powder Gun

Gun weight: ……………… 500G

Rated output voltage ……… 24VDC

Maximum output current ……… 180Ua(max)

Maximum output voltage………… 0-100KV ( adjustable)

Maximum powder injection :……… 600g/min

Polarity ……………… negative (-)

Pneumatic data

Maximum input-air pressure ………….. 8kg/cm

Optimum input-air pressure…….. 6kg/cm

Minimum input-air pressure …… 4kg/cm

Maximum water vapor content or compressed air ….. 1.4g/N m3

Maximum oil vapor content of compressed air …….. 0.1ppm

Maximum compressed-air consumption……… 13.2 m3/h


Relations products can paint by this machine

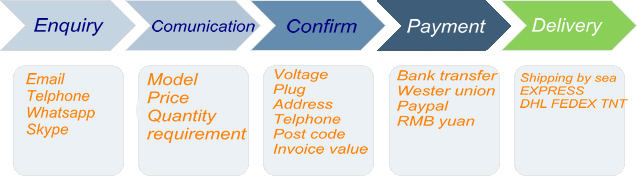

How to purchase with HICOLO?



Packing & Delivery


Colo-660 powder coating systemColo-660 powder coating system
