Multi-cyclone powder spray booth system

Multi-cyclone powder spray booth system

Multi-cyclone powder spray booth system
Multi-cyclone powder spray booth systemMulti-cyclone powder spray booth system
CategoriesMono Cyclone Powder Spray Booth
AlbumView larger image
BrandCOLO powder coating machine
ModelCOLO-S-6157
TypeMulti-cyclone
powder recovery systemmulti cyclone after filter
suitablemanual or automatic coating
Voltage220V/380V
OriginalChina
BrandHICOLO
Unit PriceUS $ 20000 / piece
FOB portFOB NINGBO o SHANGHAI
Terms of PaymentT/T, Western Union
Download DOC
Update Time2018-12-15
Detail Information

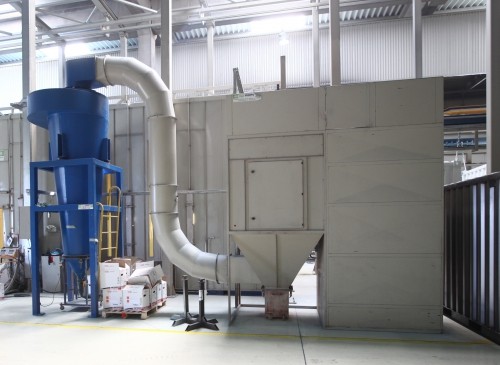

Multi cyclone after filter powder recovery system

High-efficiency powder recycle low energy consumption various color excellent quality Powder Coating booth.

The powder booth is one of the most critical components of the product finishing process,this  Multi-level cyclone separator plus double grades recycling, to recycle more powder and eliminate powder leakage. Powder Recovery


Reclaim Stand - Sieve and Hopper

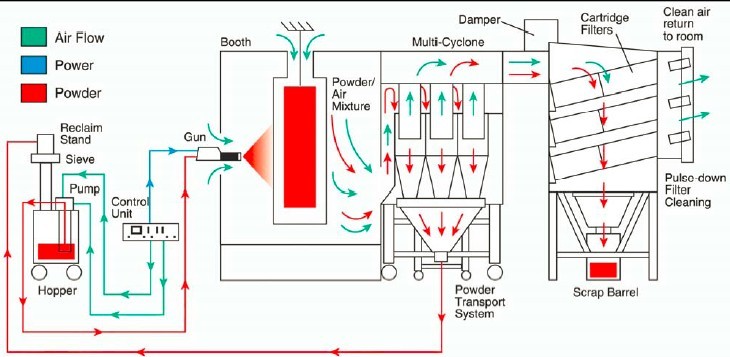

Reclaim Mode
In reclaim mode, air/powder is drawn into the cyclone inlet portion of the unit. The powder is
separated by cyclonic action that spins out the reclaim powder to a dropout hopper where it is
transferred back to the spray hopper. The separated air and residual scrap powder is discharged
to the cartridge collector where it is separated by cartridge filters and collected in the base of the
unit.

works effectively for both manual and automatic spray
operations.
