Powder coating machine pulse model

Powder coating machine pulse model

Powder coating machine pulse model
Powder coating machine pulse modelPowder coating machine pulse modelPowder coating machine pulse model
CategoriesHopper Powder coating Set
BrandCOLO powder coating machine
ModelCOLO-660
BrandCOLO
MethodPowder coating
Type of sprayCorona
UsingElectrostatic powder
Voltage110/220V
Delivery time3 days
FOB portcolochina@colourspray.com
Terms of PaymentT/T, Western Union, PAYPAL
Download DOCpdf icondoc icon
Update TimeMar 29,2024
Detail Information

Powder coating machine COLO-660 is perfect model for your coating job, you have 4 options for coating , and the pulse model is perfect for corner .

Flat model: maximizes voltage for superior transfer efficiency with coating flats parts

Complex model: adjust the voltage while holding current when coating complicated shapes and corners

Recoat model: adjust the voltage and current automatically for recoating of parts

Pulse model: rapidly recharges the powder to coat complex shapes



Electrical data

Power range 220V/110V

Frequency 50HZ /60HZ

Temperature range in use -10 ℃+50 ℃

Powder Gun

Gun weight: ……………… 500G

Rated output voltage ……… 24VDC

Maximum output current ……… 180Ua(max)

Maximum output voltage………… 0-100KV ( adjustable)

Maximum powder injection :……… 600g/min

Polarity ……………… negative (-)

Pneumatic data

Maximum input-air pressure ………….. 8kg/cm

Optimum input-air pressure…….. 6kg/cm

Minimum input-air pressure …… 4kg/cm

Maximum water vapor content or compressed air ….. 1.4g/N m3

Maximum oil vapor content of compressed air …….. 0.1ppm

Maximum compressed-air consumption……… 13.2 m3/h

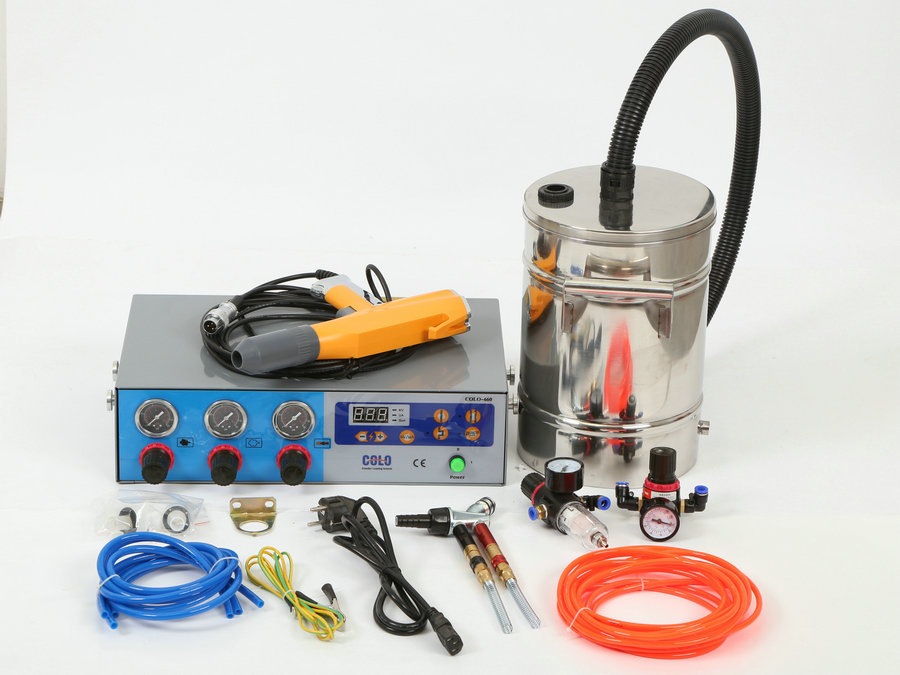

Colo-660 powder coating systemColo-660 powder coating system
