3m Gas Powder Coating Oven

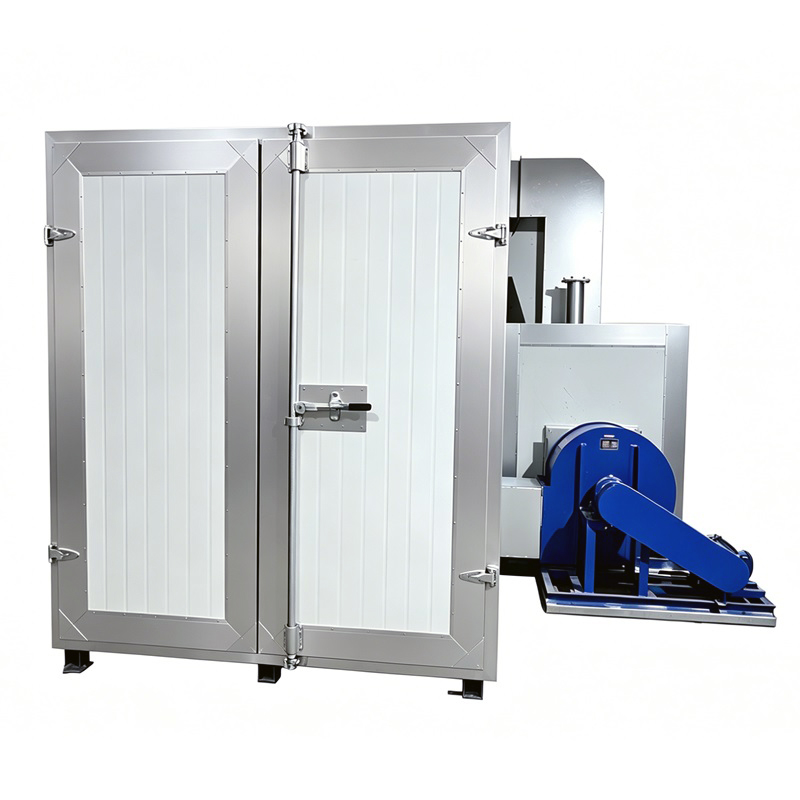

COLO-3210 Gas Powder Coating Batch Oven

COLO gas powder coating oven applies high performance burner that enables a quick raise to high temperature, saving your time everyday. And our advanced technology ensures uniform heating distribution throughout the curing oven interior that ensures quality cured results without any color aberration.

COLO-3210 Gas Powder Coating Batch Oven

The oven system is standardly equipped with a pair of trolleys: internal one and external one. Internal trolley designed in the form of a frame to loading workparts participating in curing process inside the oven. External trolley is used to carry the internal cart for outside operation and transportation.

It is a superior solution that allows loading batch of workparts taking full utilizing of oven space,  as well as carrying heavy elements using a small amount of force.

Gas Powder Coating Batch Oven Applications

Gas powder coating oven is widely used in powder coating industry, 3meter length allows batch production of various metal parts, such as vehicle wheels, frames, profiles, furniture, etc.

Gas Powder Coating Oven Specifications

Gas Powder Coating Oven Details

PLC Control Panel

The powder-coating oven is easy to operate thanks to the PLC control unit with, it offers all features and flexibilities to achieve precise heating process.

Temperature and time can be digitally set with accurate value, and read in LCD screen.

Other functions such as: Power switch, emergency stop, fan start.

Powder Coating Oven Material

Interlayer is 100mm thickness rock wool board that always keep the chamber warm and minimize the heat loss.

Inner wall is 1mm heat-resisting galvanized steel for heat preservation

Outer wall is anti-rust color steel, durable and long lifespan.

RIELLO Gas Burner

Italy Imported RIELLO gas/diesel burner, takes full utilization of fuels, making chamber rapidly and raise to required temperature. The high performance burner features reliable working and  energy-saving.

Circulation Fan

5.5kw Powerful fan circles hot air in the oven chamber and ensures uniform heat distribution with temperature stability less than 3 degree, creating quality, durable cured effect without color difference.

Why choose COLO Gas Powder Coating Ovens?

Excellent cured quality, consistent colors & thickness

Full-area hot air circulation within the oven interior ensures minimal temperature  difference (less than 3 degree), resulting in uniform thicknesses and preventing  color variations, ensuring stable and high-quality finishes for various powder  coatings.

Quick-heating, save your time everyday

Applies Itally riello burner with enough burning power, enables a quick raise to required high temperature, saves your time and increase production everyday.

Energy- savings, long-term cost reduction

A thickened high-temperature resistant insulation layer with well-sealed structure  minimize heat loss, resulting in lower energy consumption, significantly reduce  costs in long-term productions.

Safe operation, environmental-friendly

Multiple safety protections includes overheat protection, electric leakage  protection, emergency stop device. Low-noise fan makes the working environment  more comfortable.

One-stop shop, worry-free after-sale service

Complete powder coating solution from pretreatment to powder spraying, curing,  all related equipment you can get at COLO. Long-term spare parts, fast after-sales response, 1 year warranty time.
