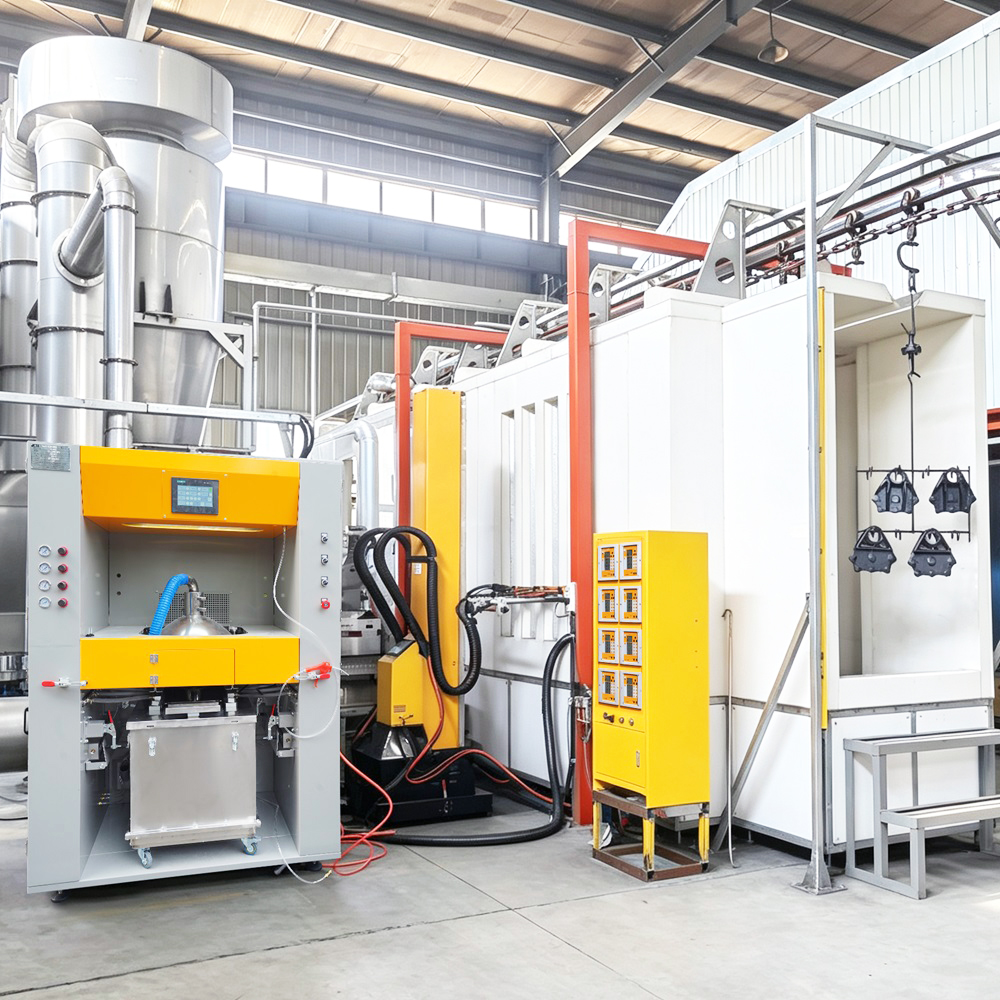

Automatic Powder Coating Booth System for Fast Color Change

It is an integrated efficient solution for your automatic powder coating line especially for multi-colors application, maximizing productivity due to the super-fast and contamination-free color changes.

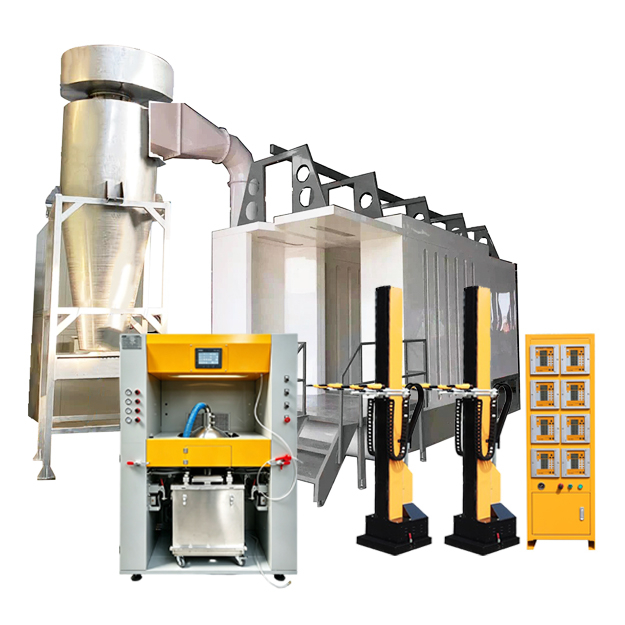

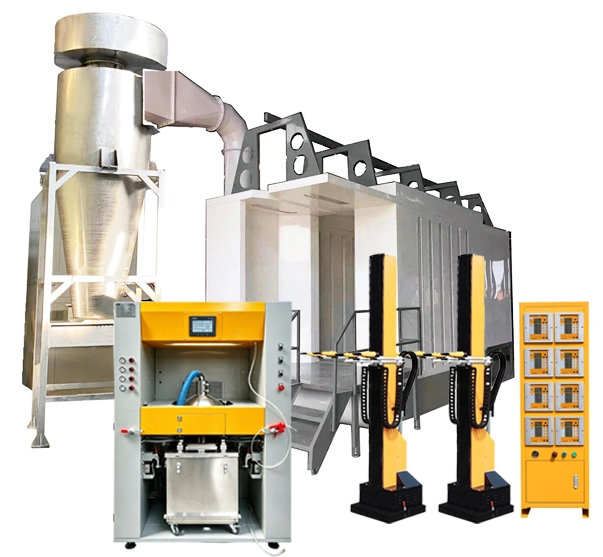

The automatic applicarion system includes cyclone powder coating booth, PLC reciprocators, advanced automatic spray guns, intelligent powder feed center.

The fast cleaning operations during color change greatly reduce downtime and increase powder recovery efficiency, as well as create a dustfree workshop.

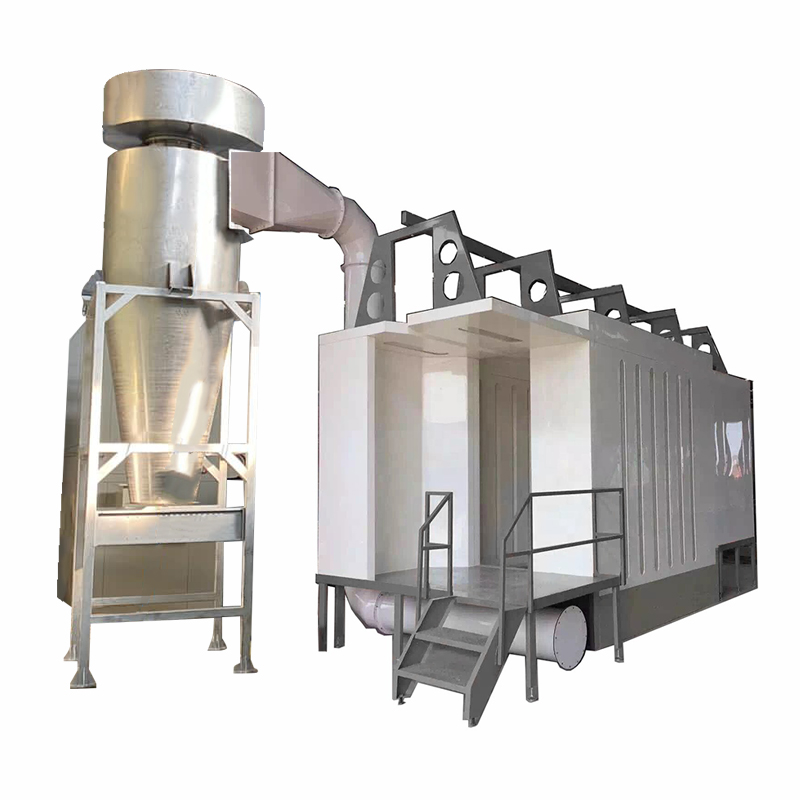

1. Cyclone device achieves efficient powder recycling up to 98%, a great saving of powders. The quick cleaning takes around 15-20 minutes, reduce downtime during color changes.

2. The secondary recovey stage is combined with a group of high precision filters effectively capture ultra fine powders, thus only particle-free air discharged outside.

3. The self-cleaning floor with air blasts  continuously transport those dropped overspray from booth floor quickly recycling to the powder feed container.

4. Booth wall can be made of anti-static engineering plastic, which prevents powder accumulations and accelerates powder cleaning.

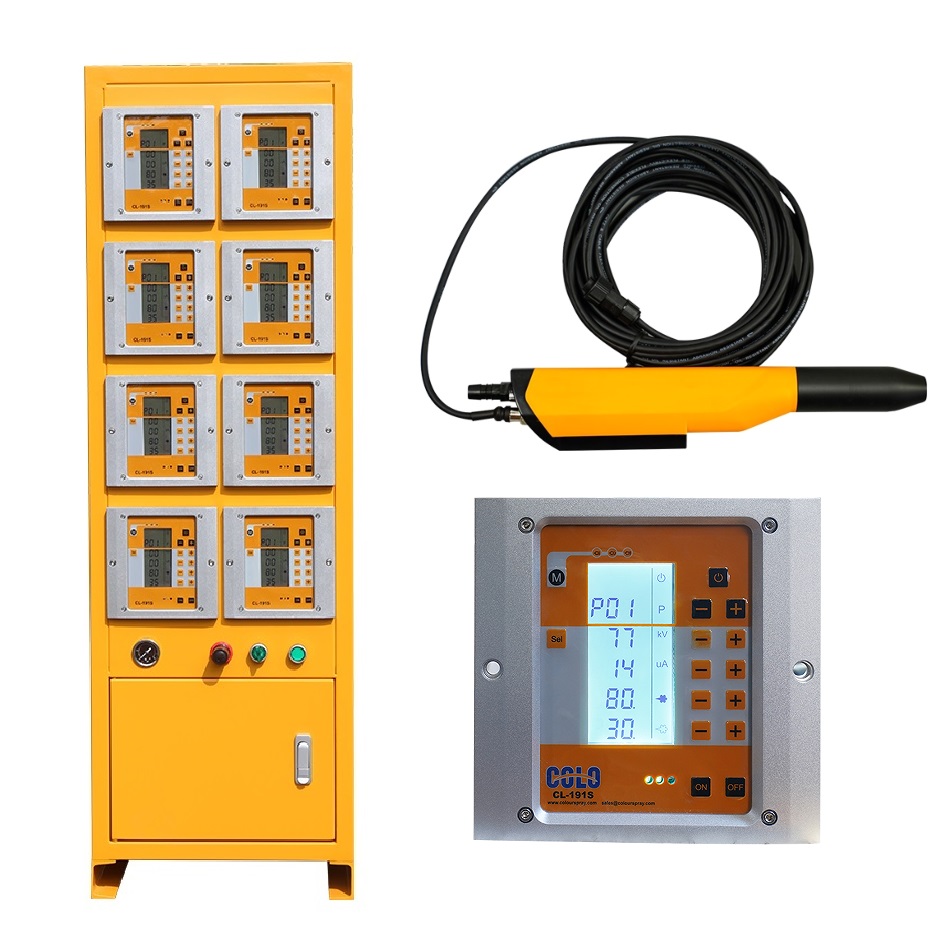

1. A central control cabinet combines all powder gun controllers for integrated operation, simple and compact

2. Enbales to set parameters only at one host unit to control whole system.

3. COLO-191S applies latest digital technology, allows flexible and accurate setting of all parameters, making it easy to find the optimal data for perfectly coating workparts even in most complex shape.

4. The 100kv spray gun powerfully charge powders that delivers high transfer efficiency, increase powder utilization.

4. COLO advanced automatic coating system offers great consistency and extremely uniform thickness of powder coverage.

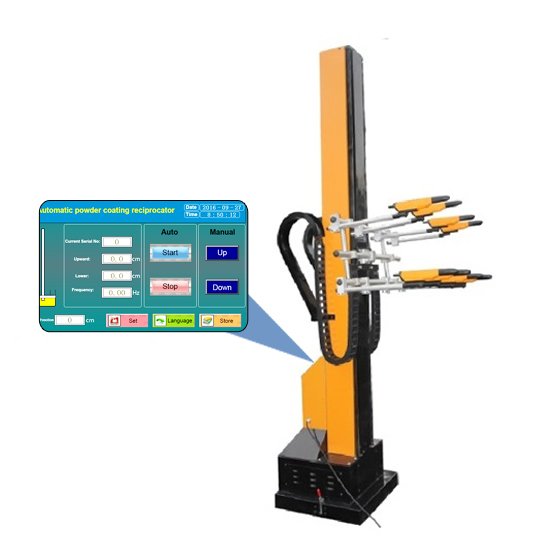

1  Frequency-adjustable powder coating reciprocator is specially designed for high quality and high productivity automatic powder coating application.

2.User-friendly PLC control system with touch screen allows quick job changes, with 20 storable programs for automatic selection of stroke and speed  for different parts individually.

3. This heavy-loaded powder coating reciprocator with great stability is able to carry up to 12 pcs spray guns.

4. Our reciprocator makes stable and precise movenment for increased uniformity of powder film thickness and always reduces powder consumption.

5. Standard moving stroke 1.5m/2m/2.5m for choice, we can also supply customized stroke according to your product shape.

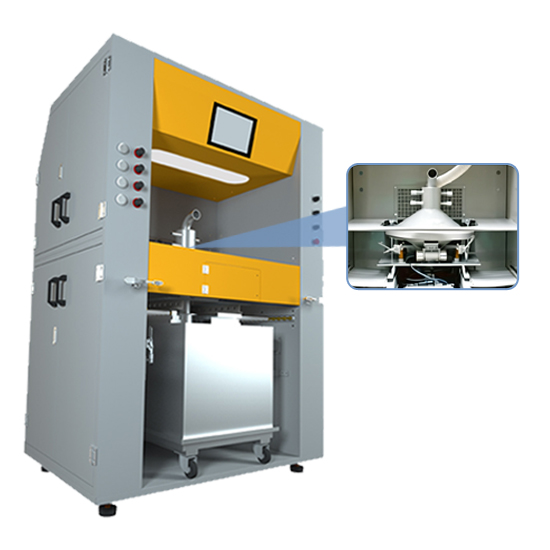

1. Powder feed center works in the powder coating line that connects powder recovery booth and spray gun for continuously powder recycling and feeding.

2. The oversprayed powders from the booth will be firstly sieved by vibratory sieving section then drop into the big hopper mixed with fresh powders.

3. A big volume closed powder container suppots for high speed powder coating line without any powder escaping.

4. Allows automatic cleaning of all powder carrying components, such as injectors, hoses, spray guns, etc, greatly improves efficiency during color change.

4. PLC system with touch screen integrates all functions you need. It control everystep of powder coating line.
