Categories | AfterMarket Powder Gun Parts |
---|---|
Brand | COLO powder coating machine |
Model | GA03 spare parts |
Application | powder coating machine |
Original | China |
Delivery | 3 days |
Terms of Payment | Western Union, T/T, Paypal |
Update Time | Apr 25,2024 |
we supply the replacement of the optiflow powder injector.
Automatic powder gun – complete, polarity negative, incl. pos. 1-9 1010 198
Automatic powder gun – complete, polarity positive, incl. pos. 1-9 1010 199
1 Powder gun body GA03 – complete, polarity negative 1008 726
Powder gun body GA03 – complete, polarity positive 1008 727
2 Threaded sleeve – see "Nozzle combinations" spare parts list
3 Flat jet nozzle – complete, see "Nozzle combinations" spare parts list
4 Gun cable – complete, 20 m, see also spare parts list "Gun cable" 1008 663
5 Cylinder screw – M8x50 mm 235 113
6 Washer – Ø 8.4/20x2 mm 215 880
7 Cable tie with Velcro closure (8x) (not shown) 303 070
8 Quick release connection - NW5, Ø 6 mm, for pos. 11 (not shown) 200 840
9 Cleaning brush – Ø 12 mm (not shown) 389 765
10 Powder hose – Ø 16/11 mm (not shown) 105 139*
11 Electrode rinsing air hose – Ø 6/4 mm (not shown) 103 144*

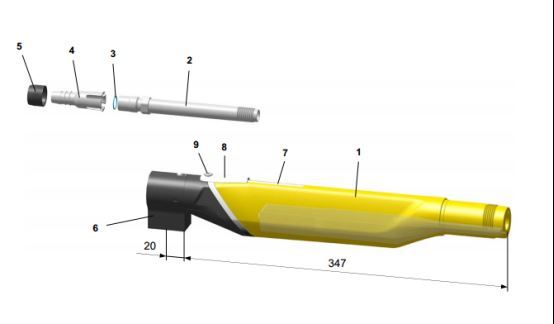

GA03 - shaft
Shaft GalinGun GA03 - complete, polarity negative, incl. pos. 1-9 1008 681
Shaft GalinGun GA03 - complete, polarity positive, incl. pos. 1.1-9 1008 682
1 Cascade - complete, negative polarity 1007 231
1.1 Cascade - complete, positive polarity 1007 232
2 Shaft (without cascade) 1008 675
3 Sealing piece - complete (incl. pos. 3-7) 1008 690
4 Cascade space gasket 1009 646
5 Gasket 1008 686
6 Axial gasket 1008 687
7 Grub screw - M5x5 mm 258 908
8 Threaded bolt 1009 587
9 O-ring - Ø 4x1.5 mm 264 466
10 Gun rear end - complete (incl. pos. 10-13) 1008 701
11 Lock knob 382 833
12 Screw - M3x3 mm 266 795
13 Screw-in nipple - M7-Ø 6 mm 1008 699
14 Rear end cover 1008 697
15 Countersunk head screw - M4x6 mm 214 639
