Powder spray gun Hose connection complete

Powder spray gun Hose connection complete

Powder spray gun Hose connection complete
Powder spray gun Hose connection completePowder spray gun Hose connection complete
CategoriesG Powder Coating Gun spare parts
AlbumView larger image
BrandCOLO powder coating machine
Modelcolo -CL362 670
ApplicaitonPG 2-A Automatic powder gun hose connection
Delivery time3 days
Replacementyes
Terms of PaymentWestern Union, T/T, Paypal
Update Time2018-01-16
Detail Information

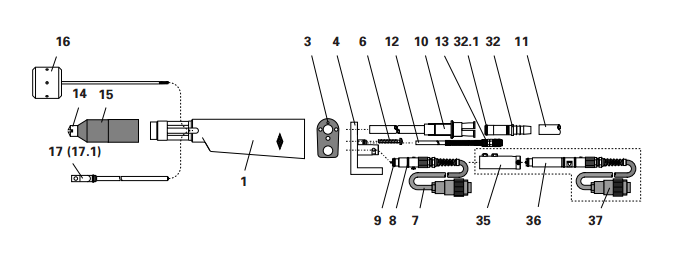

PG 2-A Automatic powder gun   NO.32


Gun complete (without Items 11, 12, 16)

- Powder tube above (Polarity –) 361 690

- Powder tube above (Polarity +) 361 704

- Powder tube below (Polarity –) (Option) 361 674

- Powder tube below (Polarity +) (Option) 361 682

Gun Body (Items 1, 3, 4, 6, 10, 17)

- Powder tube above (Polarity –) (Option) 361 399

- Powder tube above (Polarity +) (Option) 361 402

Gun Body (Items 1, 3, 5, 6, 10, 17

- Polarity – 361 534

- Polarity + 361 542

3 Gasket - 1.5 mm 360 236

4 Gun supporting bracket complete - Powder tube above 361 496

5 Gun supporting bracket complete - Powder tube below (Option) 361 488

6 "PT" Special screw 248 827

7 Gun cable (20 m) complete - for PG 2-A (with Items 8 and 9) 360 600

8 O-Ring - ø 10.82 x 1.78 mm - Nitril 232 556

9 O-Ring - ø 7.65 x 1.78 mm - Nitril 232 564

10 Powder tube complete with quick-change release for

ø 16 / 11 mm Powder hose 361 453

11 Powder hose - ø 16 / 11 mm 103 012#*

12 Rinsing air hose - ø 6 / 4 mm 103 144*

13 Quick-release coupling - ø 6 / 4 mm 200 840

14 Flat Jet Nozzle Set - Vented 319 350#

15 Threaded sleeve 328 774

16 SuperCorona complete 360 414#

17 Sealing rod - complete 361 526

17.1 O-ring - ø 3.5 x 0.9 mm - Nitril 23


PG 2-A Automatic powder gun


32 Powder hose connection - complete 362 670

32.1 O-Ring - ø 13.1 x 1.6 mm - Nitril 232 670#

33 Small parts set (not shown)

34 Extractor (not shown) 365 270

35 Adapter - PG 1-A
