Manual Electrostatic Powder Coating Spray Booth
Manual Electrostatic Powder Coating Spray Booth
| Categories | Manual Powder Coating Booth |
|---|---|
| Brand | COLO powder coating machine |
| Model | COLO-1517 |
| Delivery Time | 7-15 Working Days |
| Shipping | By Sea |
| Application | Metal Finishing Industry |
| FOB port | Ningbo/Shanghai |
| Download DOC |   |
| Update Time | Apr 24,2024 |
Detail Information
Manual Electrostatic Powder Coating Spray Booth
COLO-1517 manual electrostatic powder coating spray booth comes with high precision cartridge filters effectively capture overspray, and ensures more powders are recycled. It meets most powder coating applications, such as alloy wheels, bicycle frames, small accessories, electronic products, and other metal parts.
Product Details
PLC Control
Reliable and easy operation, the PLC panel allows users to stop and start fan motor, set working times of solenoid valves which controls the filter cleaning, also has powder collector lifting switch and emergency stop switch.

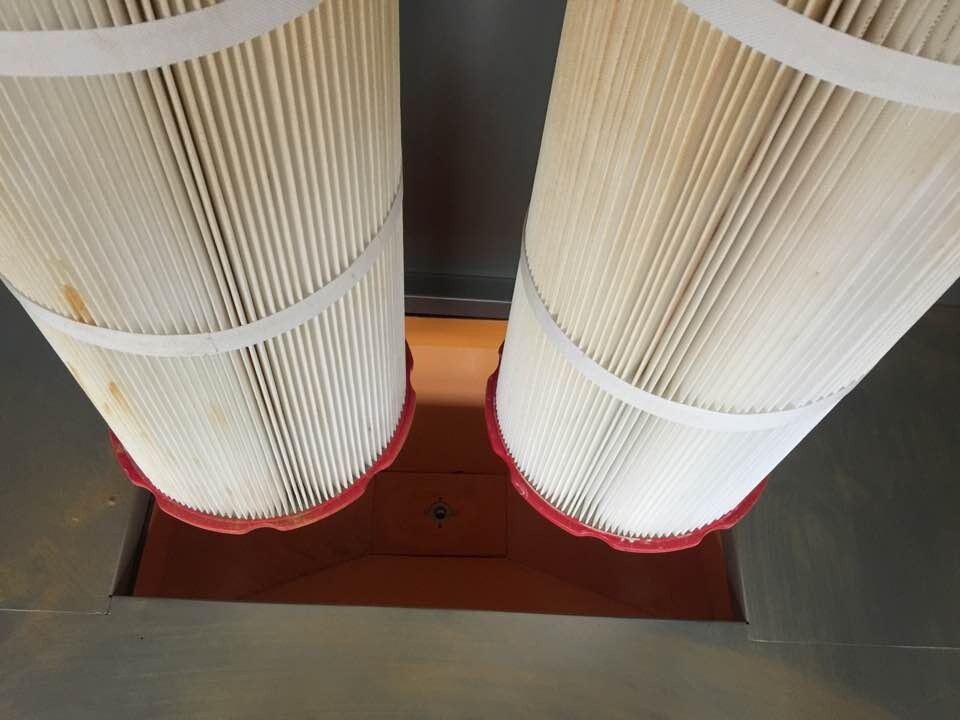

Cartridge Filters
Our powder coating booth uses highest quality filters made from 100% polyester, ensure high recycling rate of oversprayed powders and dustless working condition.
The interchangeable filters are easy to replace when changing powder colors.

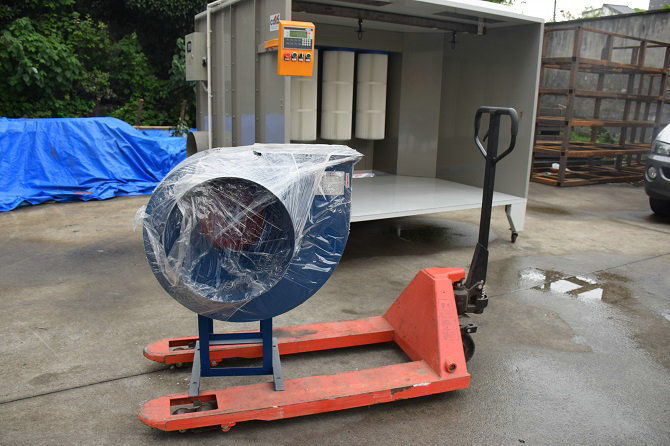

Fan Motor
2.2kw centrifugal fan motor energy-saving and long lifespan, a high-performance fan efficiently circulate air with low noise and less energy.
powerfully draw air through powder booth filter and ehaust the air back to the atmosphere free of powder particulars.

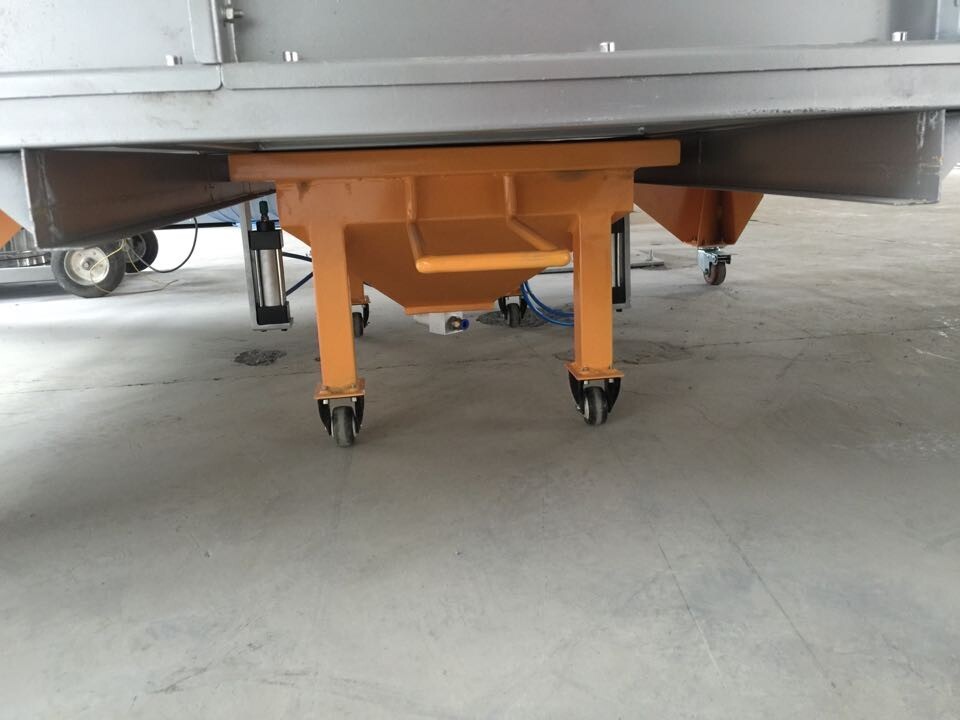

Removable Hopper
A removable powder hopper at booth bottom simplifies the utilization of recovery powders.
Filtered powder is discharged into a hopper beneath the unit which can be taken away for emptying and recycling.
Solenoid Valve
Control the pulse-jet cleaning of each filter. The filters are intervally cleaned by releasing accumulated powders controlled via solenoid valve, which extends the filters' lifespans.
Rail, Hangers, Lights
Overhead rail and hangers for easy loading of workparts. 2 sets of energy-saving lights increase the accuracy of powder coating jobs.
Product Parameters
|
Model |
COLO-1517 |
Type | Manual Powder Coating Booth |
|
Operating Dimensions |
Width1500 * Depth1000 * Heght1700mm |
|
Overall dimensions |
Width1600 * Depth2000 * Heght2250mm |
|
Power Supply |
220V/380V, 3Phase, 50-60HZ |
Fan Power | 2.2kw |
Cartridge Filter | 3 pcs, Quick-release Type, Polyester Material |
Filter Cleaning | Pneumatic |
Air Consumption | 4000m^3/h |
